Aluminium Windows: Supply Only

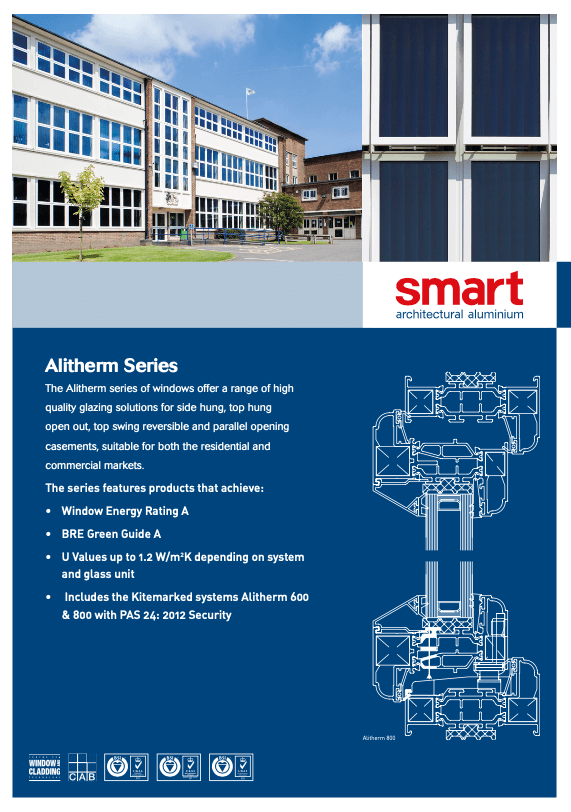

Alitherm 300

This versatile range of profiles can provide many solutions for residential and light commercial applications. It can create traditional casement windows inspired by the elegance and styling of timber products, or contemporary style windows designed for modern homes or offices.

Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside, significantly reducing thermal transmittance and enhancing the overall U-Value.

Specification

• Suitable for both internally or externally beaded, side or top hung open-out windows
• 700mm max width and 1400mm max height
• Achieves a Window Energy ‘A’ Rating when used in conjunction with the correct double or triple glazed unit
• Single or dual colour, marine quality polyester powder coat as standard
• U Value of 1.5W/m²K using a 1.0 centre pane, and a U Value of 1.2W/m²K using 0.7 centre pane
• Document L Compliant

Alitherm 600

This versatile range of profiles can provide many solutions for residential and light commercial applications. It can create traditional casement windows inspired by the elegance and styling of timber products, or contemporary style windows designed for modern homes or offices.

Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside, significantly reducing thermal transmittance and enhancing the overall U-Value.

Specification

• Enhanced systems designed to comply with the revisions to the Building Regulations
• Document L compliant
• 1000mm max width and 1400mm max height
• U Value of 1.3W/m²K
• Achieves a Window Energy ‘B’ Rating
• Extended polyamide thermal break to enhance thermal performance
• Single or dual colour, marine quality polyester powder coat as standard

Alitherm 700

Alitherm 700 is an innovative solution for enhanced natural ventilation. The system allows for a balanced, effective airflow whilst maintaining security and safety, and can also be either a side or top hung casement, or top swing reversible window.

Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside, significantly reducing thermal transmittance and enhancing the overall U-Value.

Specification

• Ideal for insertion into curtain wall facades in both low and high rise commercial buildings
• Suitable for use as either replacement windows in existing buildings or for installation into new builds
• Incorporates internally beaded vents suitable for either cockspur or shoot-bolt locking
• Single or dual colour, marine quality polyester powder coat as standard
• U Value of 1.6W/m²K with double glazing and 1.3W/m²K with triple glazing
• 2000mm max width and 3000mm max height

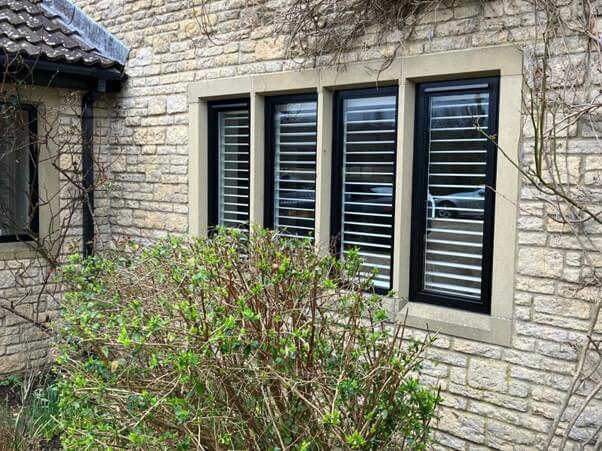

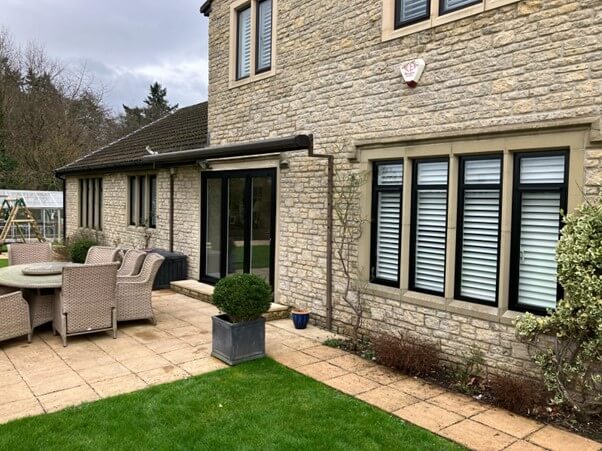

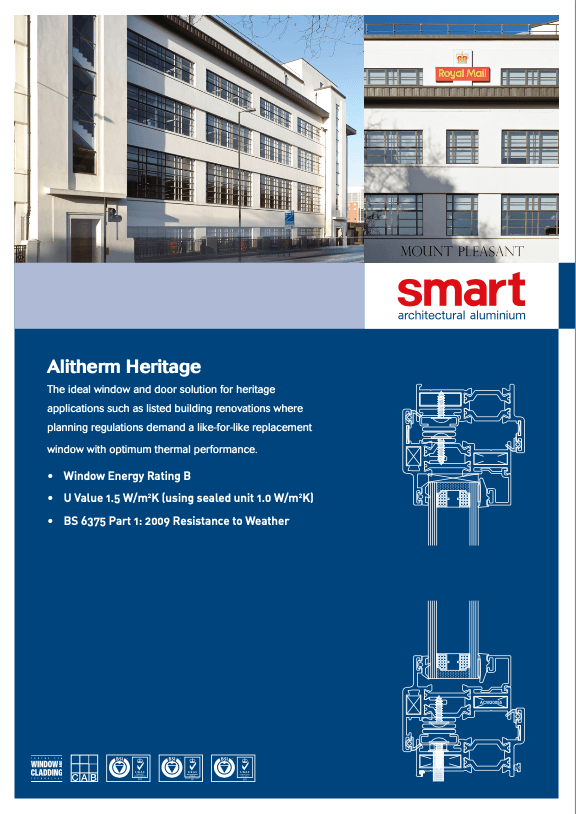

Alitherm Heritage 47

Alitherm Heritage 47 has been designed to offer a modern solution for heritage and renovation applications where the requirement to replace old steel windows is essential.

Inspired by the aesthetics of traditional steel windows, Alitherm Heritage 47 features signature slim sightlines and attractive contours making it the ideal choice for heritage building conservation areas where building regulations demand a like-for-like replacement.

The Alitherm Heritage window is designed to be built as a series of horizontal modules which can be stacked using horizontal couplers to form a multi-part window featuring a specially designed drip bar between modules.

All main profiles feature polyamide thermal break technology that enhances the thermal performance of the product, allowing Alitherm Heritage 47 windows to achieve a window energy rating ‘B’ grade when fabricated with the correct specification and glazed unit.

Specification

• 600mm max width and 1400mm max height for side hung configuration
• 1400mm max width and 1300mm max height for top hung configuration
• Window Energy ‘B’ Rating
• U Value of 1.5 W/m2 K
• Frame depth of 52mm
• Polyamide thermal break provides enhanced thermal performance

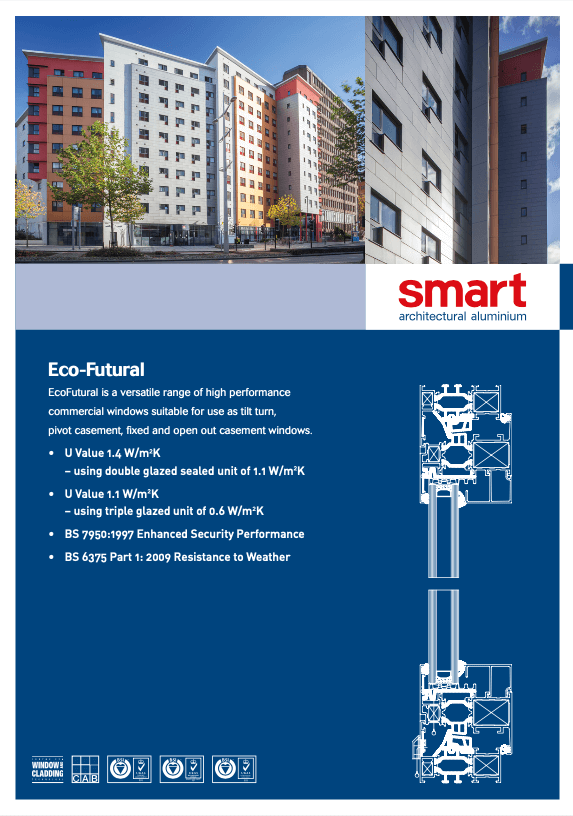

Eco-Futural

Eco-Futural is a versatile range of high-performance commercial windows suitable for use as tilt and turn, pivot casement, and fixed and open out casement windows.

All EcoFutural profiles utilise Smart’s chambered polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside, significantly reducing thermal transmittance and enhancing the overall U Value of a product.

Specification

• Suitable for open in tilt and turn, bottom or side hung casements, pivot, fixed and open out casement windows
• U Value of 1.4 W/m²K with double glazing and 1.1 W/m²K with triple glazing
• Single or dual colour, marine quality polyester powder coat as standard
• Tilt and turn max weight of 90kg
• Pivot max weight horizontal of 180kg
• Pivot max weight vertical of 120kg

Visoline

Designed for use as fixed lights, tilt and turn, single or double sash, side hung, tilt in, side, or top hung, horizontal or vertical pivot and tilt and slide windows, all options are internally beaded for use on domestic and commercial applications.

Specification

• Polyamide thermal break, allowing dual colour option
• Profiles span full height, i.e. floor to ceiling
• 51mm frame depth
• 1700mm max width and 2400mm max height
• Max panel weight of 130kg

Alitherm 800

Alitherm 800 is designed for projects that demand the highest quality aluminium window. All profiles are extruded from 100% recycled aluminium billet and feature extended, chambered polyamide thermal breaks, achieving excellent thermal performance.

Alitherm 800 achieves both Window Energy Rating and BRE Green Guide A ratings, and is suitable for all general residential and light commercial applications.

Specification

• Highest thermal performance window suitable for all general use applications
• U Value of under 1.6w/m²K
• Window Energy ‘A’ Rating
• Extended chambered polyamide thermal break to provide excellent thermal performance
• Single or dual colour, marine quality polyester powder coat as standard
• 700mm max width and 1400mm max height
